TG-1000 IN Premium Electric Stretcher for Medical Incubators

Certified 10G Impact Resistant TUV Approved Safety Standard

TG-1000 IN Electric Incubator Stretcher

SKU: MED-STR-TG1000IN

The TG-1000 IN is a premium-tier, lightweight aluminum powered stretcher optimized specifically for critical neonatal and paediatric patient transport services. Engineered to interface seamlessly with heavy medical incubators, this heavy-duty system features intelligent electric lift mechanics capable of an unassisted lifting capacity of up to 300 kg. Its rugged, structural design delivers complete crash safety compliance, making it the premier option for clinical emergency mobile deployment.

✓ Incubator Compatibility: Purpose-built frame layout perfectly compatible with specialized clinical incubators for paediatric transport operations.
✓ Unassisted 300 kg Capacity: High-torque electric lift mechanics effortlessly manage a load capacity of up to 300 kg completely unassisted.
✓ Fail-Safe Hydraulic Security: Outfitted with an active safety mechanism to completely prevent accidental collapse, paired with a dedicated hydraulic system override button to guarantee unlocking controls in the event of an electrical fault.

Clinical Performance & Maneuverability

Designed to satisfy the highest safety thresholds in professional mobile medicine, the TG-1000 IN Stretcher brings superior versatility to ambulance and emergency transport fleets. Built using high-grade, resilient structural aluminium, it ensures a highly rigid platform while keeping total vehicle payload weight minimal. The stretcher features an fully adjustable operational working height to facilitate seamless patient transfers across varying clinical platform configurations.

Maneuverability is controlled through four oversized $\varnothing\text{ 160 mm}$ rotating wheel assemblies. This heavy-duty caster orientation incorporates 2 localized locking wheels alongside 2 specialized wheels outfitted with dedicated mechanical brake units, ensuring total control on inclines or during tight ambulance tracking steps. Note: The optional modular upper tray panel (Reference C-004) can be paired for non-incubator specialized operations but is not included standard with base reference model TG-1000 IN.

Chassis Material	High-grade, lightweight structural Aluminium profile
Lift Mechanism	High-torque Electric loading and lifting control system
Maximal Lift Load	300 kg unassisted load capacity tracking
Maximum Structural Height (H)	1300 mm
Minimum Folded Height (H2)	350 mm
Total Frame Length (L)	1972 mm
Chassis Outer Width (W)	574 mm
Net Base Weight	61 kg
Wheel Diameter Specs	$\varnothing\text{ 160 mm}$ oversized rotating caster units
Braking Configurations	2 directional locking wheels + 2 wheels with independent step-on brake assemblies
Safety Certifications	Dynamic Crash Test 10G Certified \| TUV Rhineland Quality Standard approved
Emergency Redundancy	Hydraulic system bypass manual unlocking button for immediate fault override control

Compatible Lock Equipment

Recommended Accessory

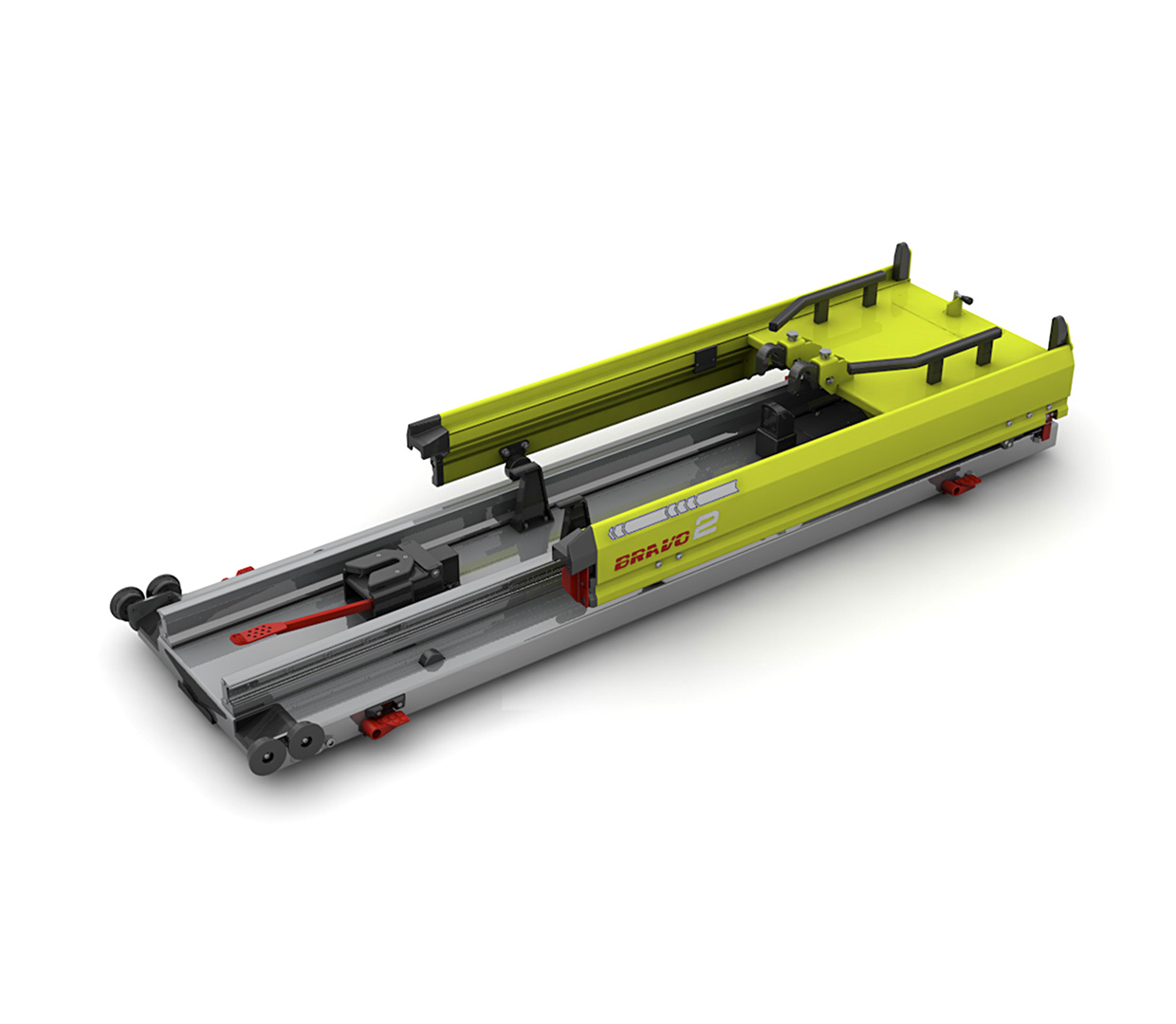

R-1002A BRAVO Telescopic Ambulance Stretcher Lock System with Lateral Movement – Brava Series

ELECTRIC BRAVA SERIES CERTIFIED 10G

Brava Series · Electric Lock System

R-1002A BRAVO

Telescopic Ambulance Stretcher Cot Locking & Loading System

The R-1002A BRAVO is a certified electric telescopic cot loading and locking system engineered specifically for the BRAVA stretcher series. It integrates a precision lateral movement mechanism that ensures secure, effortless docking of the TG-1000 stretcher directly into compatible ambulance vehicle floor tracks — eliminating manual handling effort and dramatically reducing injury risk during patient loading and unloading.

✓ Telescopic BRAVO Loading System: Motorized telescopic rail mechanism enables smooth, guided stretcher insertion and removal directly into ambulance loading channel without manual lifting.
✓ Lateral Movement Lock: Integrated lateral displacement control holds the stretcher precisely centered on the vehicle's anchor rail, preventing lateral shift during high-speed transit or emergency braking.
✓ Aluminum & Stainless Steel Construction: Dual-material frame combining high-strength aluminum alloy with corrosion-resistant stainless steel hardware ensures long operational service life and minimal maintenance overhead.
✓ 10G Dynamic Crash Certification: Independently crash-tested and certified to the 10G dynamic impact standard, confirming complete structural integrity of the lock system under extreme ambulance deceleration forces.

Quick Specifications

System Type	Electric Telescopic Loading Lock
Series Compatibility	BRAVA Series (TG-1000 / Power BRAVA)
Movement System	Lateral + Telescopic Guided Rail
Frame Material	Aluminum Alloy & Stainless Steel
Safety Certification	10G Dynamic Crash Test Certified

Compatibility Note: The R-1002A BRAVO lock system is engineered for seamless integration with the TG-1000 POWER BRAVA and TG-1000 IN stretcher models. Vehicle floor track installation may require additional fitment. Contact our team for a compatibility assessment.

Why a Certified Ambulance Stretcher Lock System Matters

In emergency medical transport, a certified stretcher locking system is not optional — it is a clinical safety mandate. Stretcher movement during ambulance transit can cause secondary patient injuries and compromise IV lines or airway management equipment. The R-1002A BRAVO lateral telescopic lock eliminates all in-vehicle stretcher displacement, providing EMS crews a hands-free, 10G crash-certified anchor point that keeps the TG-1000 stretcher firmly fixed to the ambulance floor rail from the moment the loading sequence completes until deliberate release is triggered.

10G

Dynamic Crash Standard

Electric

Motorized Load & Lock

Lateral

Anti-Shift Lock Mechanism

Al + SS

Aluminum & Stainless Steel
